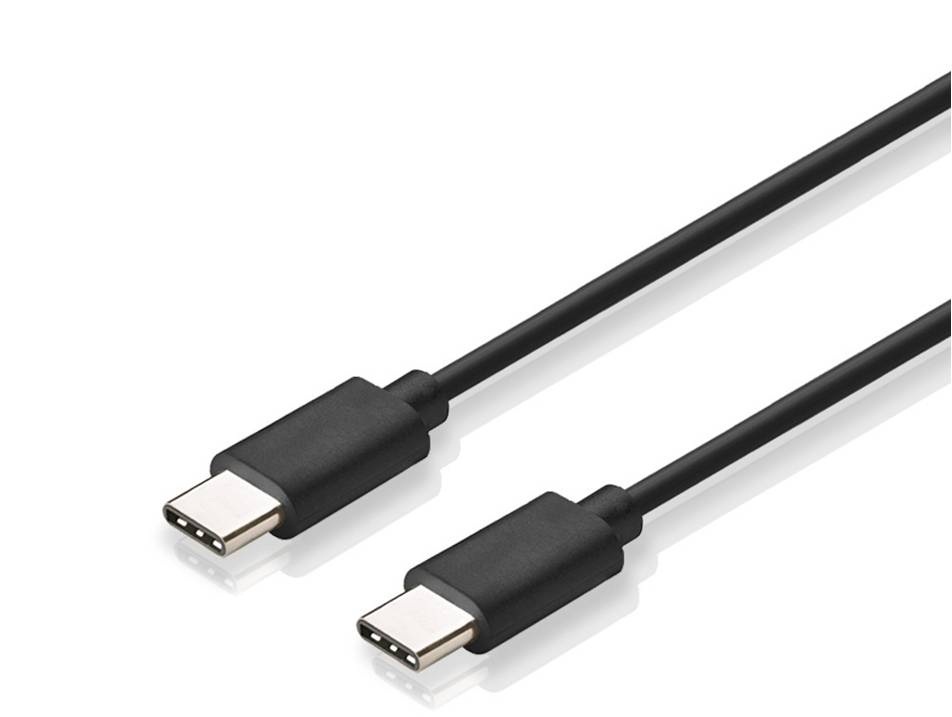

Type-C USB cable appearance characteristics

1.Ultra-thin
The thinner body requires a thinner port, which is one of the reasons why USB Type-C cable was born. The USB-Type-C port has a length of 8.3 mm and a width of 2.5 mm. Old USB ports 14 mm in length and 6.5 mm in width have become obsolete. This also means that the end of the USB-Type-C data cable will be one-third the size of a standard USB-A data cable plug.
2. No positive and negative
Like Apple’s Lightning cable interface, the front and back sides of the USB-C port are the same. This means that no matter how you insert this port is correct. The user does not have to bother with the front and back of the USB port.

Type C USB Cable Technical Features

1. USB-Type-C cable interface in the USB 3.1 standard data transmission speeds up to 10Gbps;
(The USB-Type-C cable interface can transmit data up to 40Gbps on Thunderbolt3.)
2.USB-Type-C cable interface socket size is 8.3mm × 2.5mm;
3. Support “positive and negative insertion” functions that can be inserted from both sides. It can withstand 10,000 times of repeated insertion and removal.

4. The standard-size cable with USB Type-C cable connector can pass 3A/5A current, and also supports “USB PD” which exceeds the existing USB power supply capability and can provide maximum 100W (20V/5A) power.
