HDMI cables must operate at the full 18Gbps bandwidth, which is typically needed for interacting and combining 4K/Ultra HD content with HDR (High Dynamic Range) and High-Frame Rates (50/60fps).

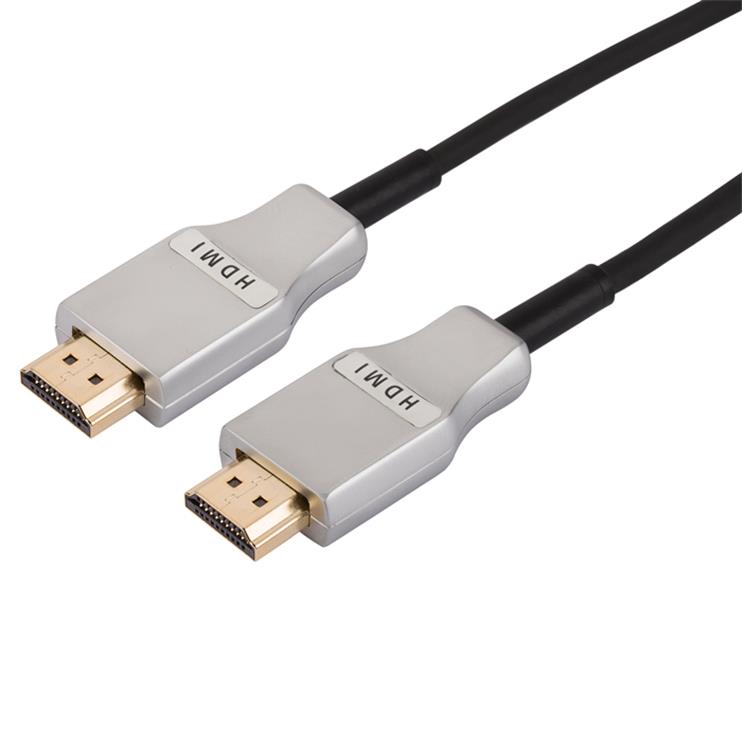

STC Fiber Optical HDMI Cable
● Provides 4K@50/60Hz(4:2:0/4:2:2/4:4:4,HDR10) output at lengths beyond the ability of HDMI copper cables.
● The cable works just like a conventional HDMI cable, no external power or special setup required.
● It is just a HDMI male plug on the both ends.
● Applied for connecting Blue-ray, 3D video, Projector, Set-up box, DVR, TVs
Installation Notes:
● Plugs are marked SOURCE / DISPLAY. 'SOURCE' is for player such as Blu-ray, while 'DISPLAY' end is for display such as TVs.
● Test the cable with your devices before installation to ensure that all work well.
Specification:
● Supports Full HDMI2.0 specification.
● Supports 4K resolution - 4K30P and 4K60P.(4K@60Hz Subsampling 4:2:0/4:2:2/4:4:4)
● Supports HDR/ARC/3D/HDCP2.2/EDID/CED/Ethernet.
● Supports 32 Uncompressed Audio Channels
● Plug and Play, no external power and no special setup required.
● Compatible with all kinds of HDMI equipments.
● Cable Diameter: 0.2inches (4.8 mm)
● Bending radius: 0.4inches(10mm).
● Connectors: 24k Gold Plated HDMI Male (19 Pins)
Technical Specifications
|
Item |
|
|
Product # |
STC00963 |
|
Warranty Information |
|
|
Warranty |
Lifetime |
|
Performance |
|
|
Type and Rate |
18Gbps 4K 60hz 4:4:4 |
|
Hardware |
|
|
Cable Jacket Type Cable Shield Type Connector Plating |
TPE/LSZH (Low Smoke Zero Halogen) Flexible polymer optical cable Gold plating |
|
Connector |
|
|
Connector A Connector B |
1 – HDMI Source |
|
Physical Characteristics |
|
|
Cable Length Color Product Weight Wire Gauge |
10ft to 900ft |
|
Packaging Information |
|
|
Included in Package |
HDMI Fiber Cable 4K 60HZ |
|
Service |
|
|
Sample MOQ |
Free 1 to More |
